Description

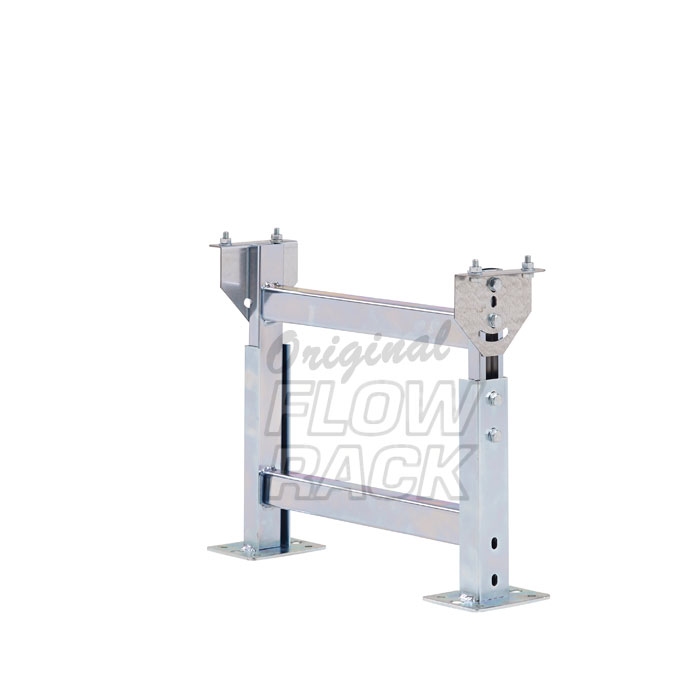

LOW, stationary H-stand for (top of) roller conveyor height 425-600 mm.

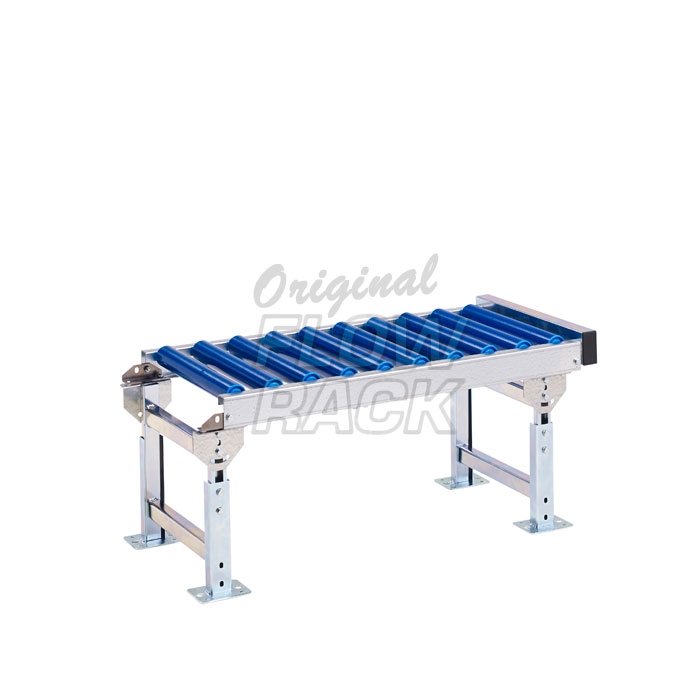

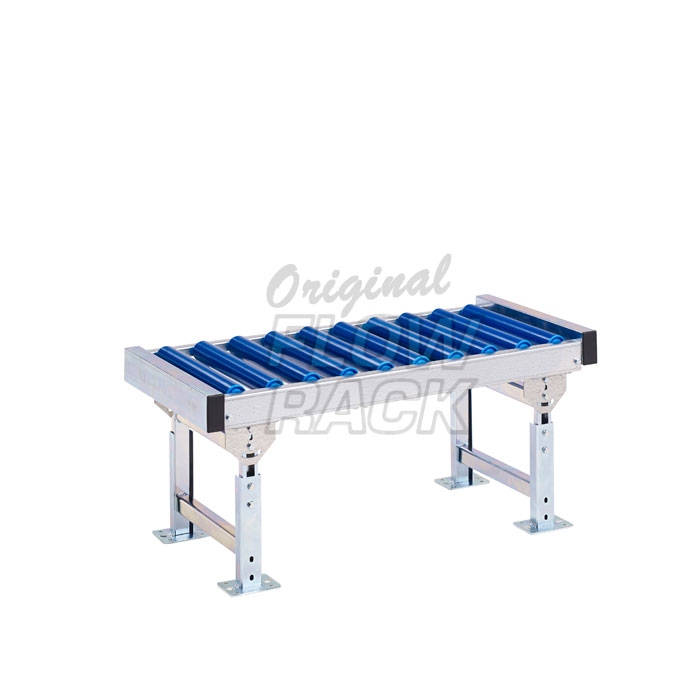

This is the standard stand for roller conveyors and curves.
Robust version, all parts are made out of galvanized steel.
The slope and height are both (infinitely) adjustable.
Pre-assembled delivery, factory pre-set at the height you order.
Let us know the height of the roller conveyor
When ordering, please let us know what roller conveyor height you need (top of roller conveyor)
and we will deliver the pre-assembled H-stand factory pre-set to the specific height.
Standard height range 425-600 mm (top of roller conveyor)
Lower is also possible. We then shorten the stand without extra costs (higher is not possible).
If you cannot give us the height, then you can adjust the stand to your desired height on-site.
The H-stand is then delivered pre-assembled and pre-set at a standard height.
Dimensions & technique
Width 465 mm, height is adjustable 425-600 mm (top of roller conveyor).
Made out of heavy steel profiles, galvanized version.
Can be used as straight (90°) stand or with adjustable angle.
300 kg loading capacity per H-stand (in straight 90° position).
Scope of delivery
1x Stationary H-stand pre-assembled, LOW version.
2x Floor anchor (for cement floor).
Bolts/nuts (M8) for roller conveyor assembling.
Still needed
Roller conveyors, curves and possibly end profiles.
