Description
This is a “TEST FIRST” product.

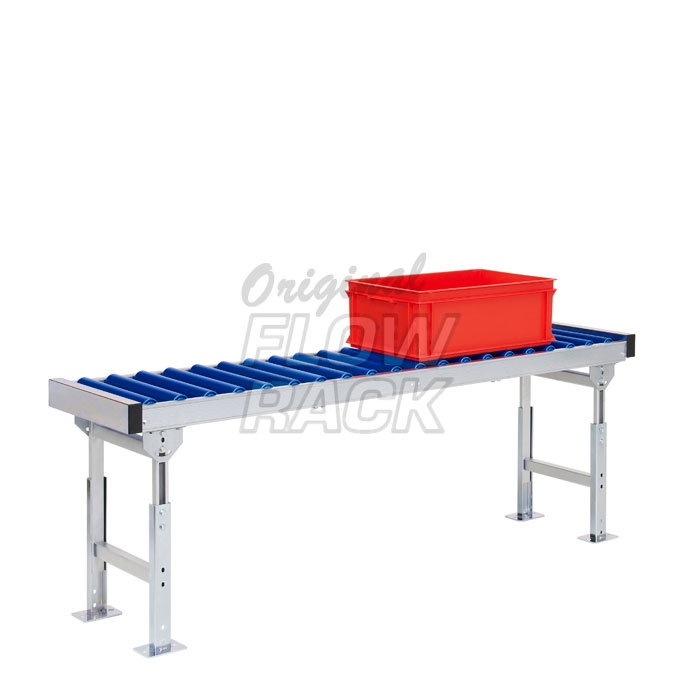

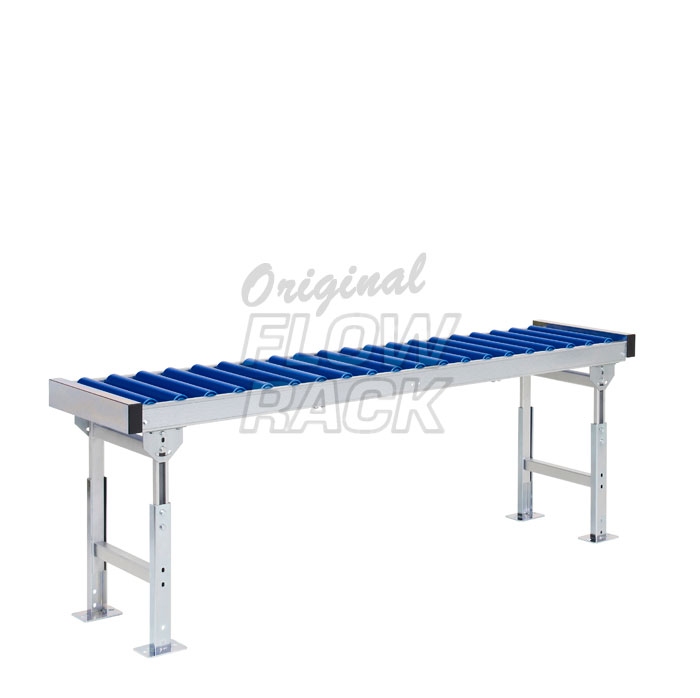

Complete stand-alone roller conveyor with a length of 1840 mm.
Roller conveyor and H-stand are delivered pre-assembled.
You just have to put them together on-site.
Choices
- Choose a STATIONARY or MOBILE variant.
- Choose HIGH or LOW stands.
Roller conveyor height: Factory set on your instruction
When ordering, state the desired roller conveyor height (top of roller conveyor)
and we deliver the H-stand pre-assembled and pre-set at the requested height.
Stay within the set height range (top side roller conveyor rollers):

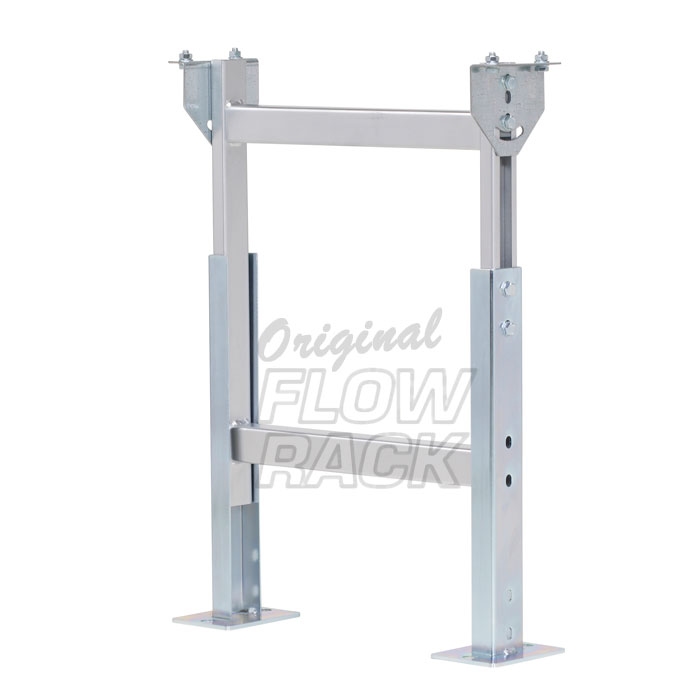

- Stationary stand HIGH: 600-900 mm.
- Stationary stand LOW: 425-600 mm.

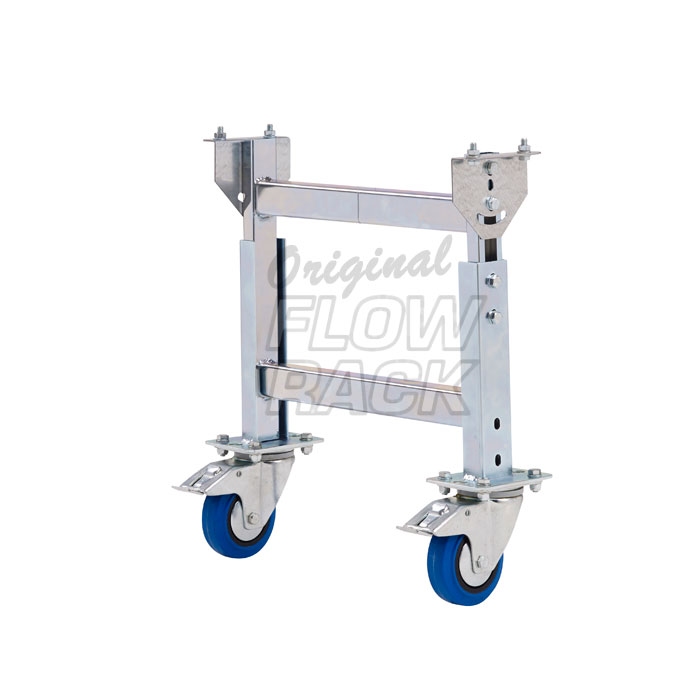

- Mobile stand HIGH: 700-875 mm.
- Mobile stand LOW: 550-700 mm.
If you do not state a height, then you can adjust the height on-site.
The H-stand will then be delivered pre-set at a standard height.
Dimensions & technique
Dimensions 1840x465x425-900 mm (LxWxH).
Roller length 400 mm (EL).
Roller pitch 92 mm (center-to-center).
Plastic carrier roller ø50 mm, stainless steel bearing balls, colour blue.
Solid 8 mm spring-loaded axle, galvanized.
20 rollers per main element, maximum roller load 15 kg/piece.
300 kg loading capacity per main element (1840 mm).
Scope of delivery
1x Roller conveyor main element 1840 mm, pre-assembled.
2x H-stand stationary or mobile, pre-assembled (pre-set at the requested height).

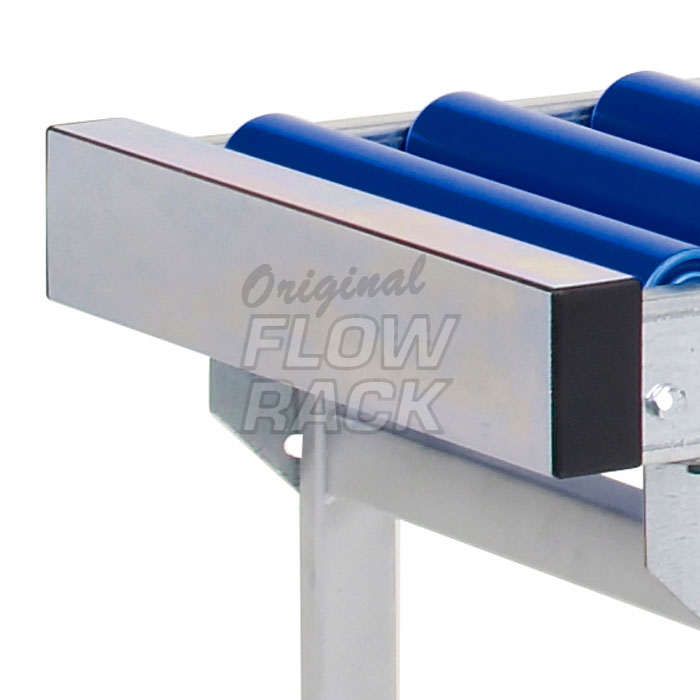

2x End profile (with bolts/nuts).
Still needed
Nothing at all, this is a complete roller conveyor.
